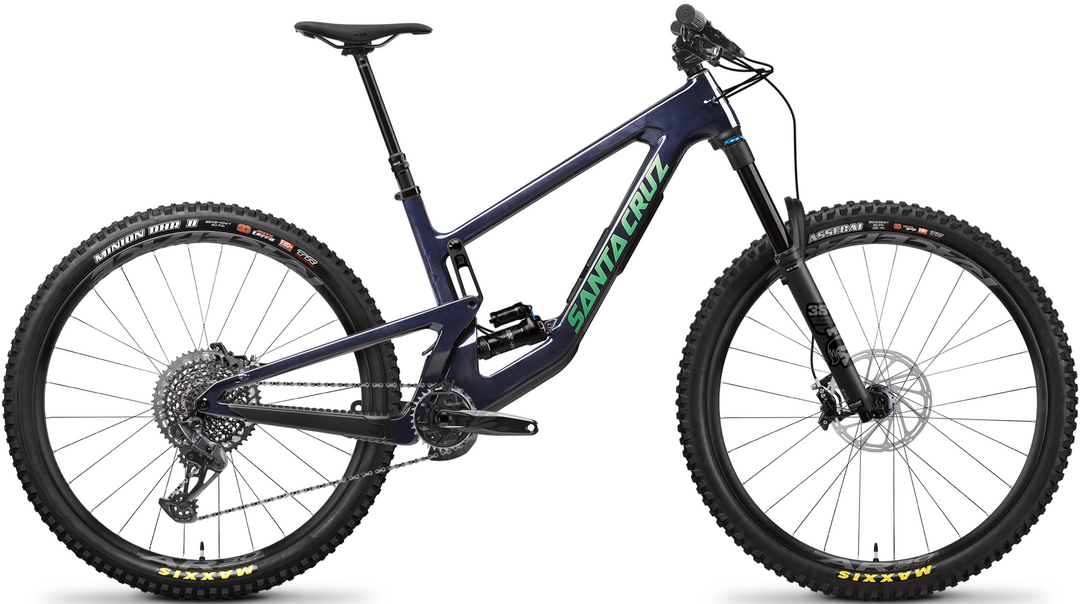

Megatower C S (2022)

Megatower C S (2022)

58-22263-109-2-759-838301

Regular price$6,499.99
/

Color
Size
MEASUREMENTS IN MM
Size Small Medium Large X-Large XX-Large
Rider Height 5'1"-5'5" 5'5" - 5'9" 5'9" - 6'1" 6'1" - 6'4" 6'4" - 6'7"
Reach (hi/lo) 430/427 455/452 475/472 495/492 520/517
Stack (hi/lo) 616/618 625/627 638/640 656/658 670/672
Head Tube Angle (hi/lo) 63.8°/63.5° 63.8°/63.5° 63.8°/63.5° 63.8°/63.5° 63.8°/63.5°
Seat Tube Length (hi/lo) 380 405 430 460 500
Front Center (hi/lo) 770 799 826 855 886
BB Height (hi/lo) 346/342,5 346/342.5 346/342,5 346/342,5 346/342,5
BB Drop (hi/lo) 26.5/30 26.5/30 26.5/30 26.5/30 26.5/30
Wheelbase (hi/lo) 1206 1236/1237 1266 1298 1333/1334
Rear Center (hi/lo) 436/437 437/438 440/441 443/444 447/448
Head Tube Length (hi/lo) 90 100 115 135 150
Top Tube Length (hi/lo) 570 594/595 613 637/638 666/667
Seat Tube Angle (hi/lo) 77.24°/77.0" 77.42°/77.2" 77.8°/77.5° 77.8°/77.5" 77.8°/77.5"
Standover Height (hi/lo) 709/705 716/712 723/718 722/717 724/720
Size / Geometry

Wheelsmith Gold Label Assembly will be added at checkout for only $79 (reg. $100) to cover the professional bike build and re-packaging by our certified Wheelsmith technicians.
FREE In-Store Pickup available in the Greater Bay Area and Denver Area.

Enjoy FREE shipping on all orders over $99! Orders under $99 ship for just $7.95.

All bikes ship FREE, including top brands like Cannondale, Santa Cruz, Cervelo, Gazelle, and Pivot. For the best ride-ready experience, our Gold Label Assembly service is automatically added at checkout for only $79 (regularly $100). This ensures your bike is professionally built, tested, and expertly re-packaged by our certified technicians—It's bike shop quality, direct to your doorstep.

Some bikes may be ineligible for shipping due to manufacturer restrictions.

Shop with confidence! It's important to us that you are happy with your Mike’s Bikes purchase so we offer offer a 30-day return/exchange window for your unused gear and 14 days on all bikes. Our exchange and return process is fast and easy. If you choose to exchange for a different size or color, we will ship your product for free.

View Full Policy

Megatower is the ultimate privateer race bike. Backed with lifetime bearing replacement, its durable pivots are completely serviceable with a multitool in the back of a van or on the side of the trail. Megatower is a tool built for severe duty, and it’s supported by the Santa Cruz Lifetime Warranty.

The Megatower geometry and kinematics are meant for providing comfort at speed and a margin for error when taking blind risks.

FEATURES:

  • The Glovebox™ means never starting a ride without all the tools you need and not having to strap it to the outside of your gorgeous machine. Includes a Tool Wallet and Tube Purse.
  • Lower leverage ratio for more damped, controlled feel. Straight leverage curve provides consistent progression and no surprises.
  • Lower Link Flip Chip & sealed bearing shock eyelet
  • Chainstay length is matched to the frame size. Every rider gets the same balanced geometry.
  • Lower overall leverage (thanks to a longer 62.5 stroke shock) provides more damping support for aggressive riding. Straighter end-stroke improves bottom-out resistance.

SPECS:

Frame Carbon C 29" 165mm Travel VPP™
Rear Shock RockShox Super Deluxe Select+ 230x62.5
Fork FOX 38 Float Performance, 170mm
Rear Derailleur SRAM GX Eagle, 12spd
Shifter SRAM GX Eagle, 12spd
Cassette SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM GX Eagle, 12spd
Chainguide OneUp Bash Guide
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 29"x2.4" EXO+, 3C MaxxTerra
Front Tire Maxxis Assegai 29"x2.5" EXO+, 3C MaxxGrip
Sealant Stan's Sealant
Front Hub DT Swiss 370, 15x110, 6 bolt, 28h or E13 SL, 15x110, 6 bolt, 28h
Front Rim RaceFace AR Offset 30 29" Rims
Spokes Sapim Race
Rear Hub DT Swiss 370, 12x148, XD, 28h or E13 SL, 12x148, XD, 28h
Rims RaceFace AR Offset 30 29" Rims
Rotors Avid Centerline 200mm
Front Brake SRAM Code R
Crankset SRAM GX Eagle 148 DUB 30t
Handlebar Burgtec Alloy Bar, 800mm
Stem Burgtec Enduro MK3 42mm
Saddle WTB Silverado Pro Saddle or WTB Volt
Seatpost RockShox Reverb Stealth, 31.6 or Race Face Aeffect
Grips/Bar Tape Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnar
*Product specifications are subject to change without notice.
