A new breed of trail bike that blends power, performance and flat-out fun. With its lightweight composite frame, plush suspension and new motor technology, you’ll never want the ride to end.
A new SyncDrive Pro motor delivers 85Nm of torque, so you have the freedom to ride trails the way you want to. The composite frameset features 140mm of rear suspension travel (with 150mm up front) and a flip chip that lets you adjust frame geometry. A RideControl Go button on the top tube offers easy on/off and switching between power modes. In addition, the RideControl Ergo 3 controller can be mounted on the left or right side of the handlebar.
FEATURES:
- Powerful and Responsive: New SyncDrive Promotor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.
- Adaptable to the Terrain: New flip chip feature lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

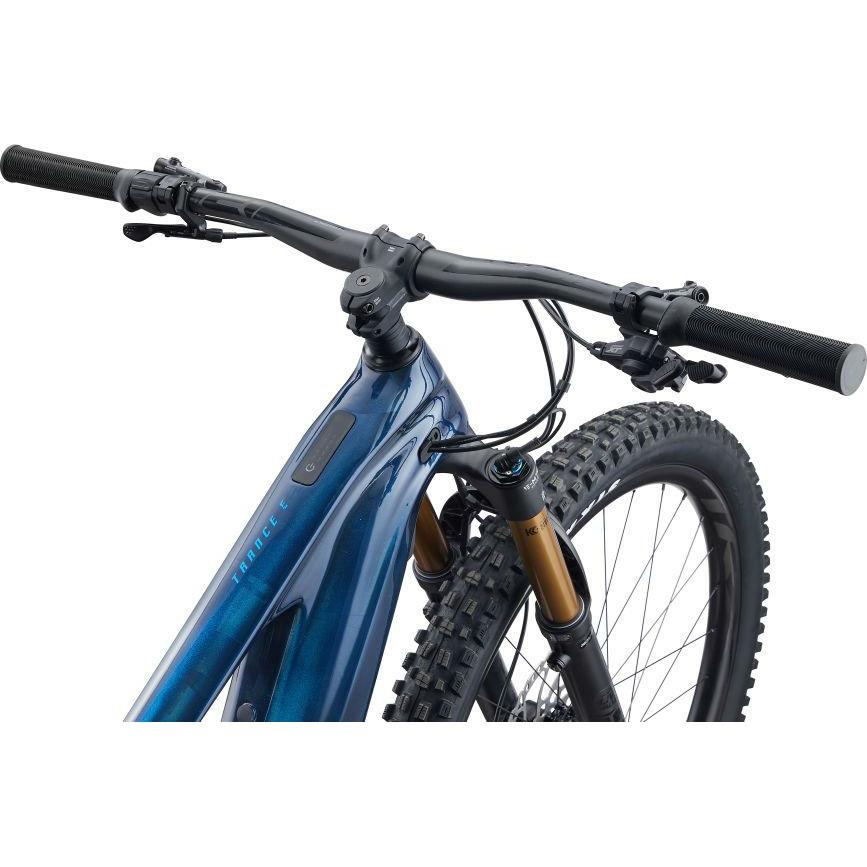

- Clean Cockpit: The new RideControl Go top-tube integrated multi-function on/off button and RideControl Ergo 3 handlebar mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.
SPECS:
| Motor | SyncDrive Pro, 85Nm, powered by Yamaha |
| Battery | EnergyPak Smart 625, EnergyPak Plus, 250Wh range extender compatible |
| Controller | RideControl Ergo 3, grip integrated |
| Display | RideControl GO, frame integrated LED displayANT+ Wireless display compatible |
| Max Assist Speed | 20 MPH (Class 1) |
| Charger | EnergyPak Smart 6A charger |
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
| Fork | Fox 36 Factory Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, e-bike integrated |
| Shock | Fox Float X Factory Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated |
| Handlebar | Giant Contact SLR 35 Carbon, 35mm |
| Grips | Giant Tactal Pro-E, single lock-on |
| Stem | Giant Contact SL 35 S 40mm, M 40mm, L 40mm, XL 50mm |
| Seatpost | Giant Contact Switch, dropper, 30,9mm (S 125, M 150, L/XL 170) |
| Saddle | Giant Romero SL |
| Pedals | Platform |
| Shifters | Shimano Deore XT |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore XT, 12-Speed, Shadow+ |
| Brakes | Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm |
| Brake Levers | Shimano Deore XT, BL-M8100 |
| Cassette | Shimano HG-M71000, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Crankset | Praxis Performance Carbon e-crank arms, Praxis Wave 36T Cold Forged 4130 premium steel chain ring (Q-factor=168, S 160mm, M/L 165mm, XL 170mm) |
| Rims | Giant e-TRX 29", Tubeless ready, 30mm inner width |
| Hubs | Giant e-TRX [F] 110x15 [R] 148x12mm Thru-axle |
| Spokes | Giant e-TRX |
| Tires | Maxxis Assegai 29x2.6" foldable, Tubeless, EXO, 3c MaxxTerra[F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 120tpi 3C [R] |
| Extras | Tubeless kit (liquid, valves, levers) |
| Lighting | Optional Giant Recon series e-bike lights available and directly connectable (not included) |
| Lock | Torx 25 Battery Lock with built-in Torque limiter |
*Product specifications are subject to change without notice.
