When you’re climbing steep singletrack, accelerating on fast and flowy trails, or committing to big moves on technical terrain, power matters. Weight matters, too. Those two factors combined, the power-to-weight ratio, play a major role in how an E-MTB performs on the trail.

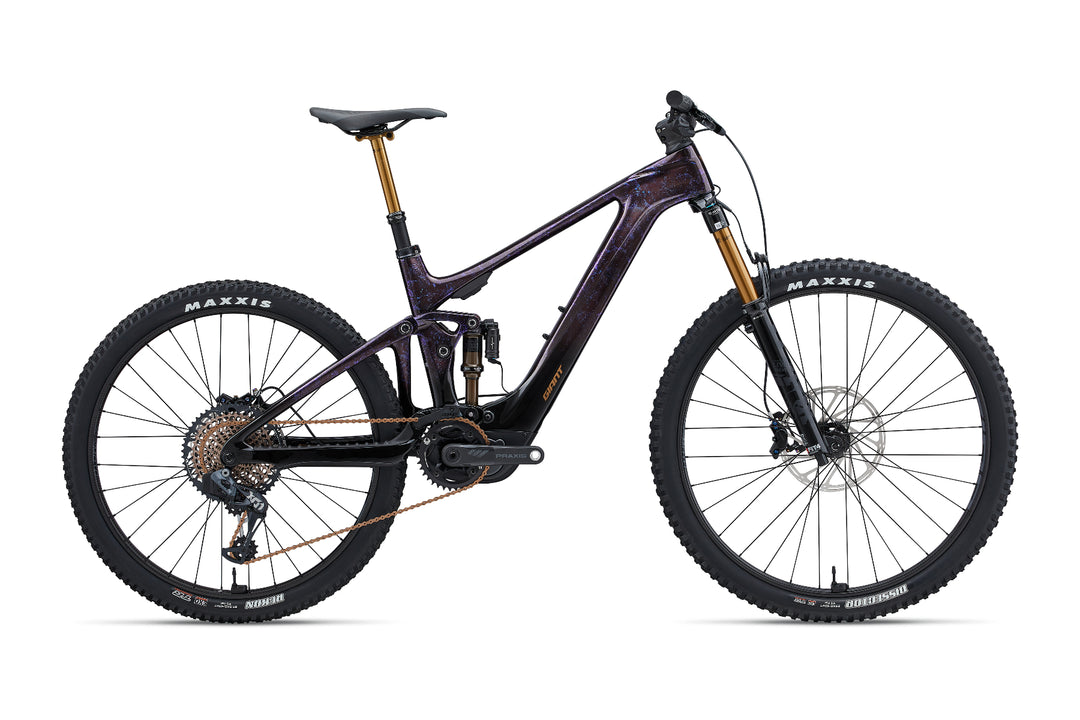

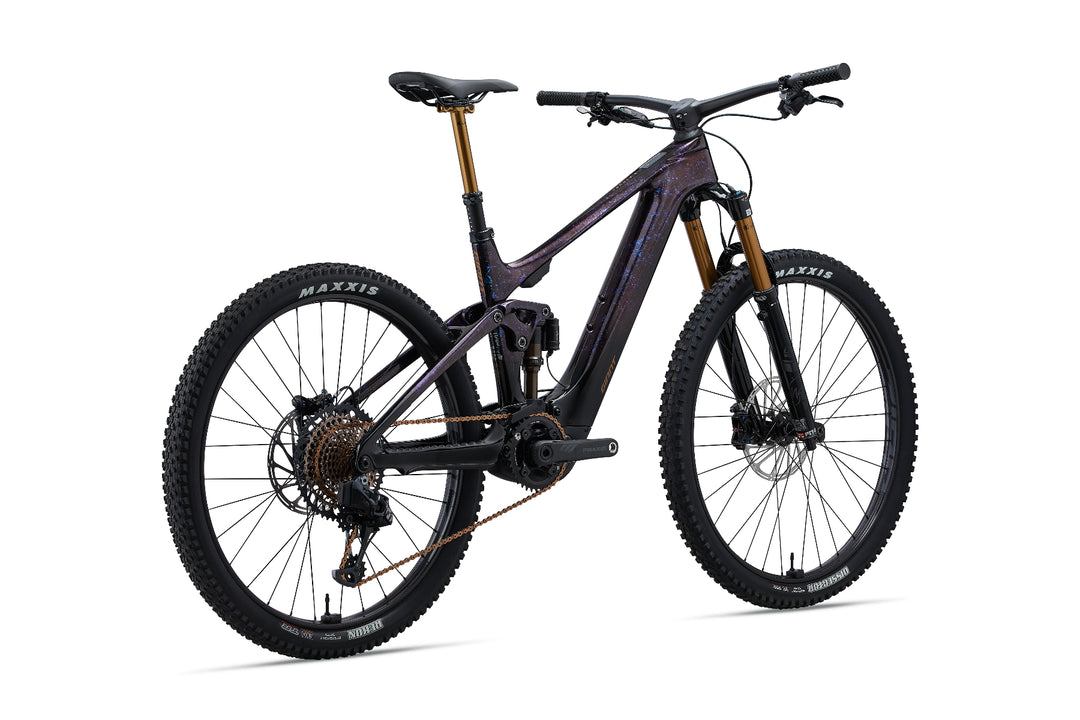

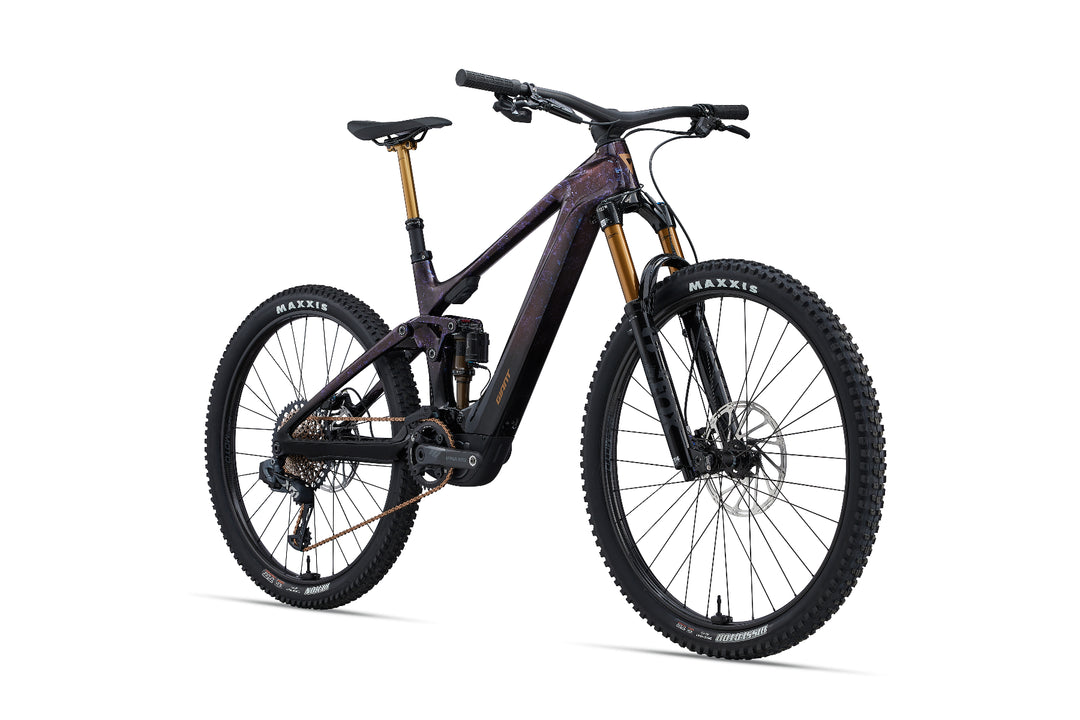

That’s the main idea behind the all-new Trance X Advanced E+ Elite, the lightest full-power E-bike in the world.
This versatile new E-bike is powered by a proven SyncDrive Pro 2 motor that delivers 85Nm of pedaling support. The motor shape is optimized to work with Giant’s Maestro rear suspension system. This is the same powertrain ridden to multiple national championships and EWS-E podiums by Josh Carlson of the Giant Factory Off-Road Team.
FEATURES:
- Lighter weight: The new SyncDrive Pro 2 motor & EnergyPak 400 battery are designed to be ultra slim. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.
- Advanced cockpit control: RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
- More power: New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.
SPECS:
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
| Fork | Fox 36 Factory Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, e-bike integrated |
| Rear Shock | Fox Float Factory Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated |
| Rims/Wheels | Zipp 3MOTO 29" [F] /27.5" [R], Carbon |
| Hubs | Zipp 3MOTO ZM2 |
| Spokes | Zipp 3MOTO |
| Tires | Maxxis Dissector 29X2.40" Foldable, TLR, EXO [F]Maxxis Rekon 27.5x2.4" Foldable, TLR, EXO+ [R] |
| Crankset | Praxis Performance Carbon e-crank arms (S:160,M/L:165, XL:170) SRAM X-SYNC Eagle 36T chain ring |
| Chain | SRAM XX1 Eagle Powerlink |
| Chain Guide | MRP HD2 co-moulded chain guide |
| Rear Derailleur | SRAM XO1 Eagle AXS |
|
Cassette/Rear Cogs
|
SRAM XG-1299, 10-52T, 12-speed |
| Shifters | SRAM AXS Rocker Paddle, wireless electronic shifting |
| Handlebars | Giant Contact SLR Trail, carbon, 800mm |
| Stem | Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System |
| Brake Levers | SRAM Code RSC |
| Brakes | SRAM Code RSC, 4-piston, hydraulic disc,220mm[F] / 200mm[R] |
| Pedals | Sold Separately |
| Saddle | Giant Romero SL, Neutral |
| Seat Post | Fox Transfer Factory (S:125, M:150, L/XL 175mm) |
| Motor | SyncDrive Pro, 85Nm, powered by Yamaha |
| Battery | EnergyPak Smart 400, EnergyPak Plus range extender compatible |
|
Display/Controller
|
ANT+ cycle computer compatible w/ RideControl GO integrated in TT, RideControl Ergo 3 |
|
Max Assisted Speed
|
20mph (Class 1) |
| Charger | N/A |
|
Accessories & Extras
|
Tubeless kit (sealant, valves, levers, manual, tool) |
*Product specifications are subject to change without notice.
