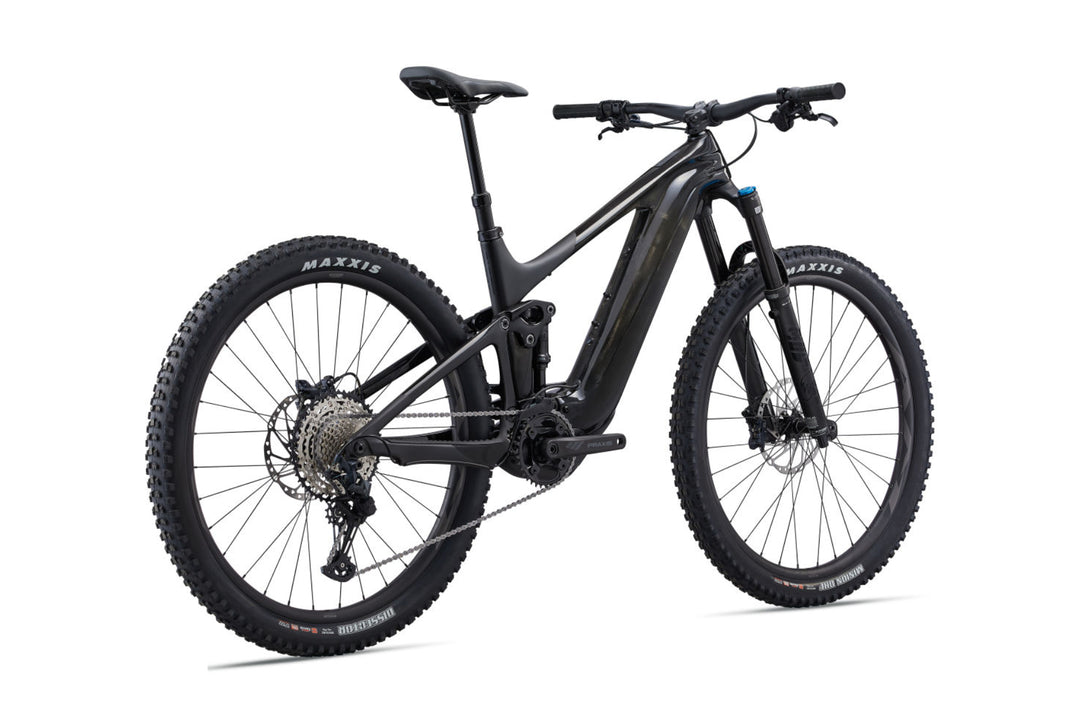

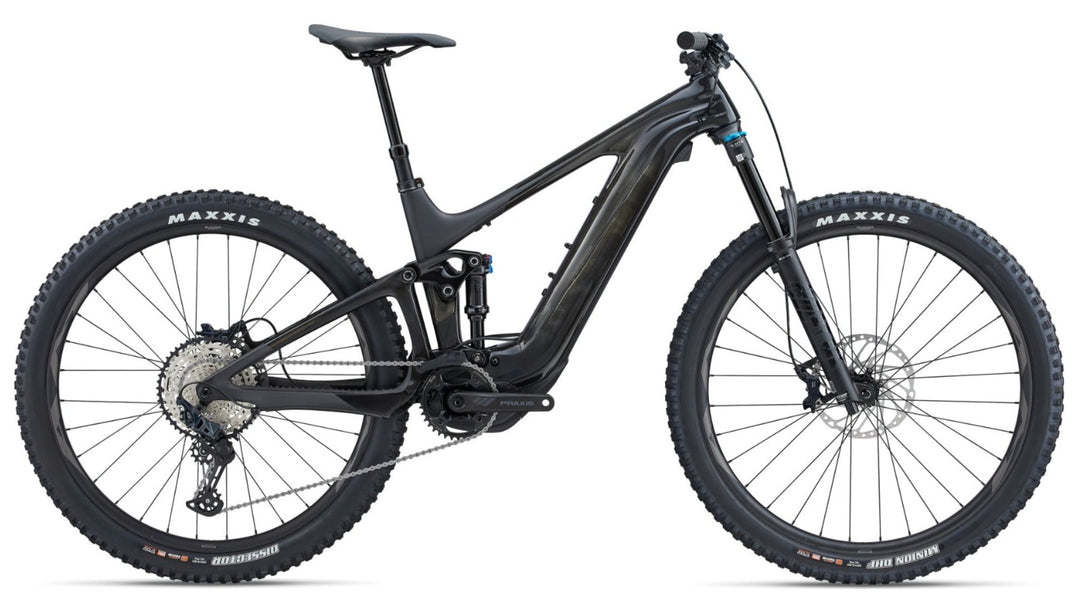

A new breed of trail bike that blends power, performance and flat-out fun with its lightweight composite frame, plush suspension and new motor technology, you'll never want your ride to end.
FEATURES:
- Smooth, powerful support: SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
- Smart Assist: All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.
- EnergyPak & EneryPak Plus: Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of riding and is compatible with EnergyPak Plus which can boost total capacity by 250Wh
-
Trail-riding control: Optimized Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
- Adaptable to the terrain: Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
-
Hybrid Cycling Technology: Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control unit, EnergyPak battery systems and SyncDrive motor.
SPECS:
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
| Fork | Fox 36 Float Performance, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Boost 110x15QR, e-optimized |
| Rear Shock | Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned |
| Rims/Wheels | Giant AM 29", Tubeless ready, 30mm inner width, e-bike optimized |
| Hubs | Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim E-Lite [R] Race [F], e-bike optimized |
| Tires | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
| Crankset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160mm, M/L: 165mm, XL:170mm) |
| Chain | KMC e.12 Sport, NP/NP, e-bike optimized |
| Chain Guide | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore SLX, 12-speed, Shadow+ |
|
Cassette/Rear Cogs
|
Shimano CS-M6100, 10-51T, 12-speed |
| Shifters | Shimano Deore SLX |
| Handlebars | Giant Contact 35 Trail, 35x780mm |
| Stem | Giant Contact SL 35 |
| Brake Levers | Shimano SLX, I-spec EV |
| Brakes | Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm |
| Pedals | Flat pedal |
| Saddle | Giant Romero, Neutral |
| Seat Post | Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170) |
| Motor | SyncDrive Pro, 85Nm, powered by Yamaha |
| Battery | EnergyPak Smart 800, EnergyPak Plus range extender compatible |
|
Display/Controller
|
ANT+ cycle computer compatible w/ RideControl GO integrated in TT, RideControl Ergo 3 |
|
Max Assisted Speed
|
20mph (Class 1) |
| Charger | Included |
|
Accessories & Extras
|
Tubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied, Torx 25 Battery Lock with built-in Torque limiter, Optional:- Giant Recon series e-bike lights available and direct connectable |
*Product specifications are subject to change without notice.
