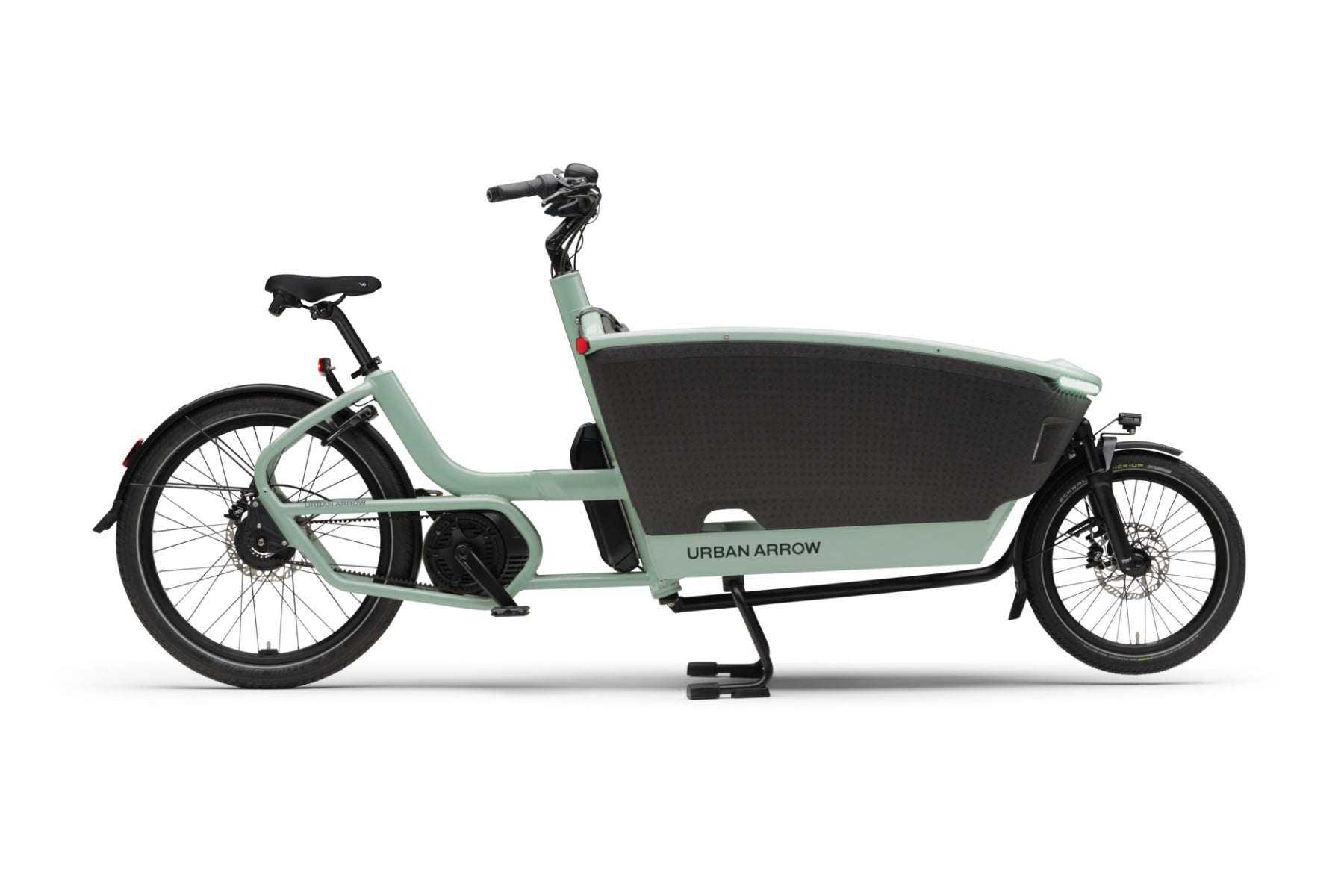

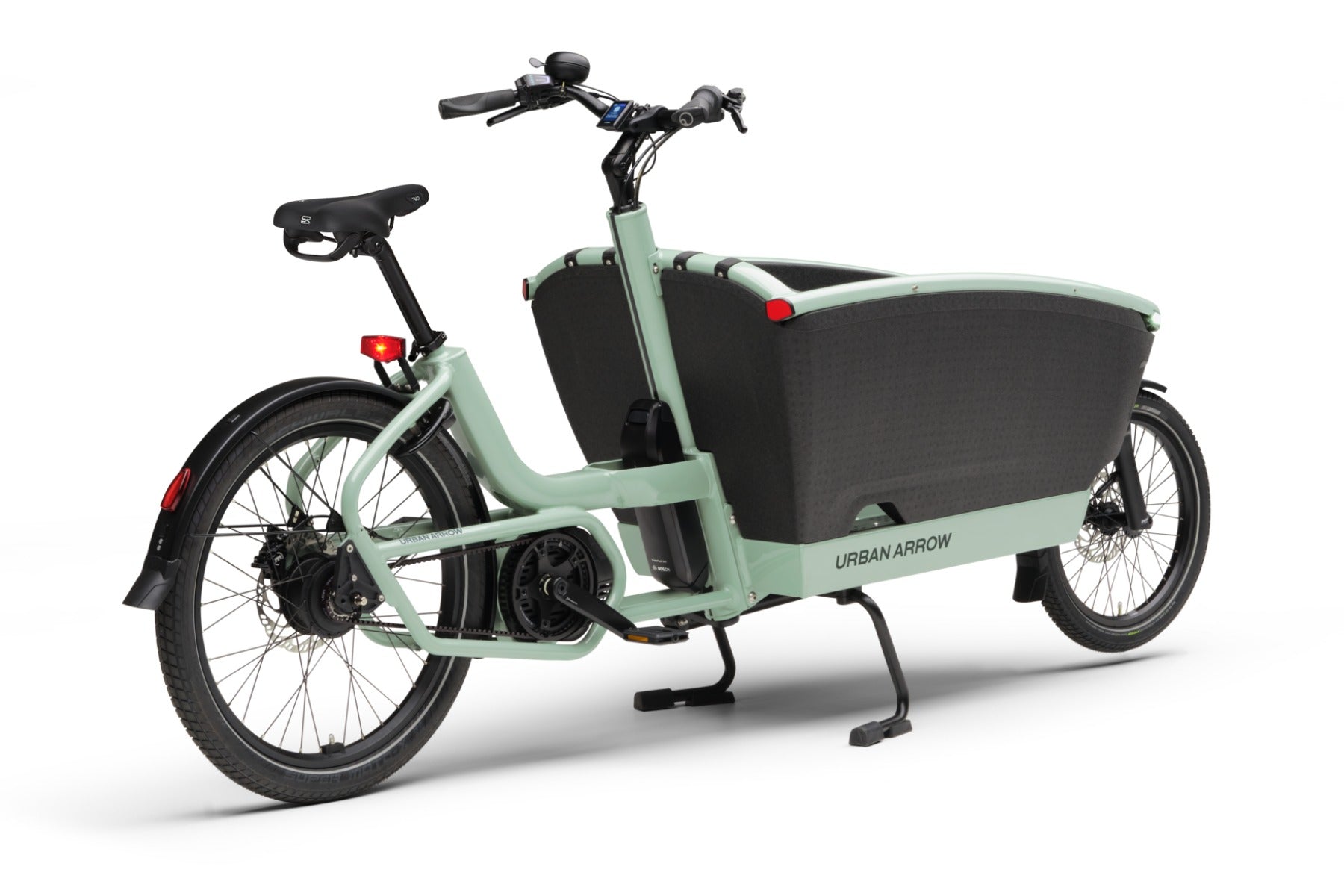

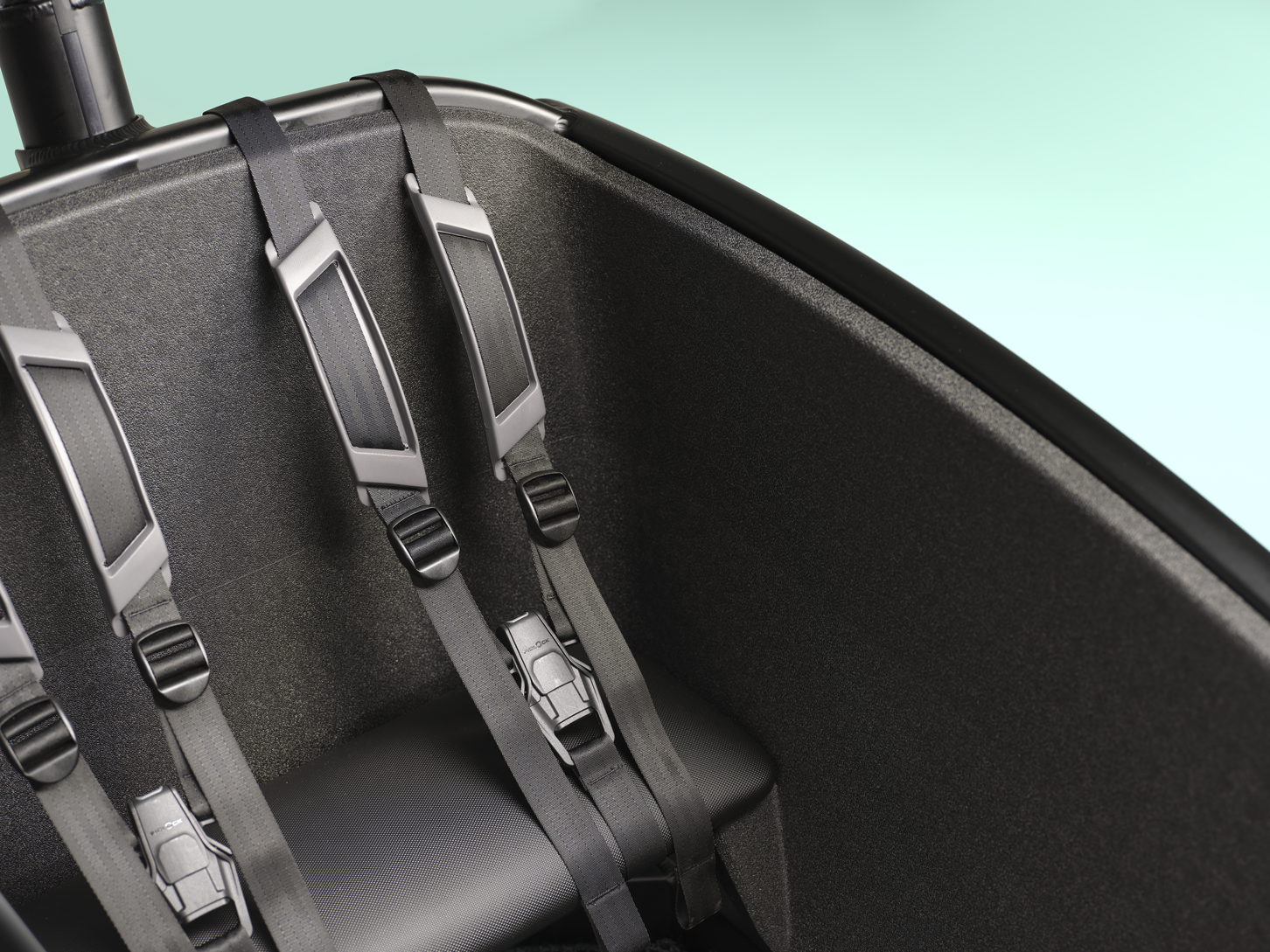

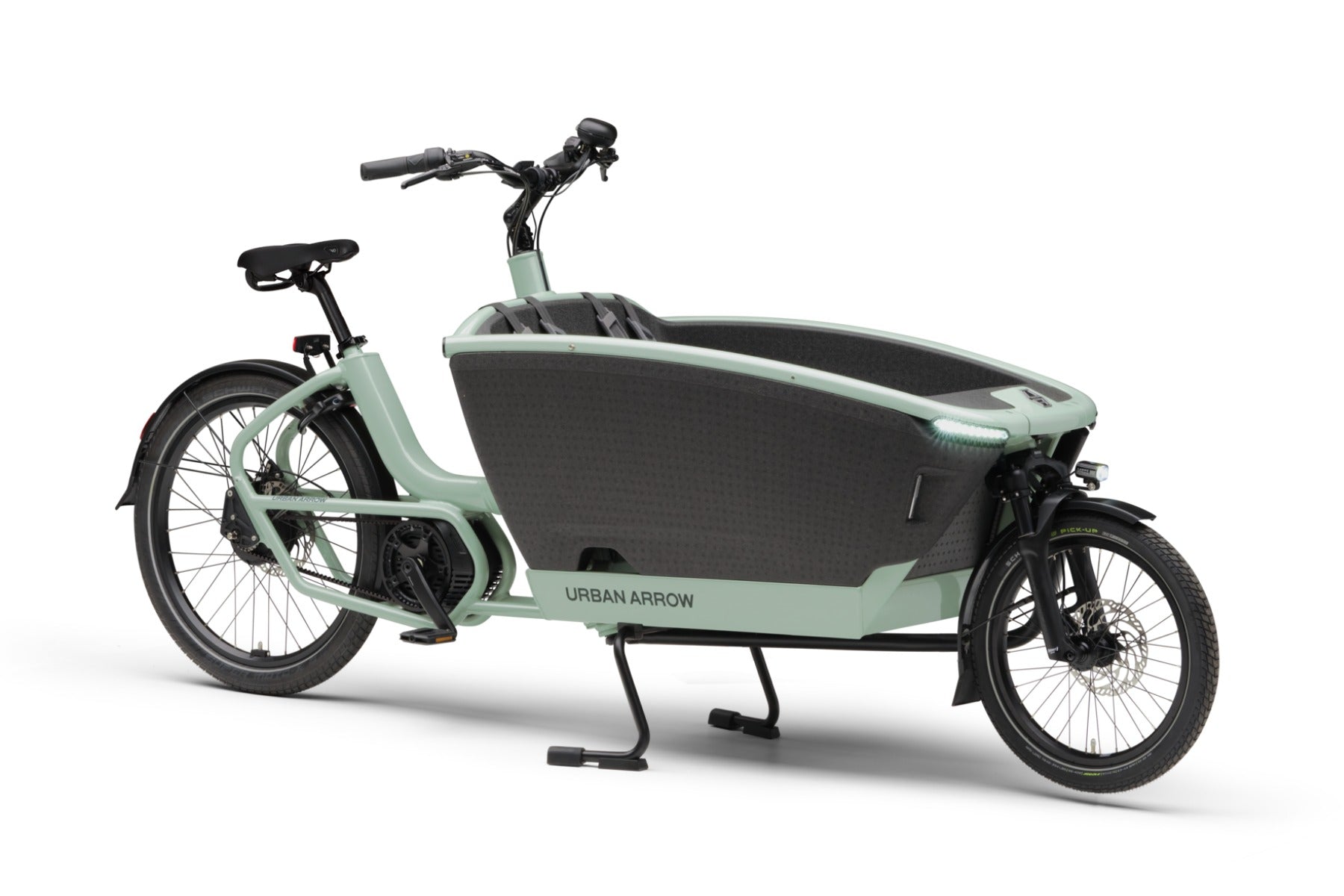

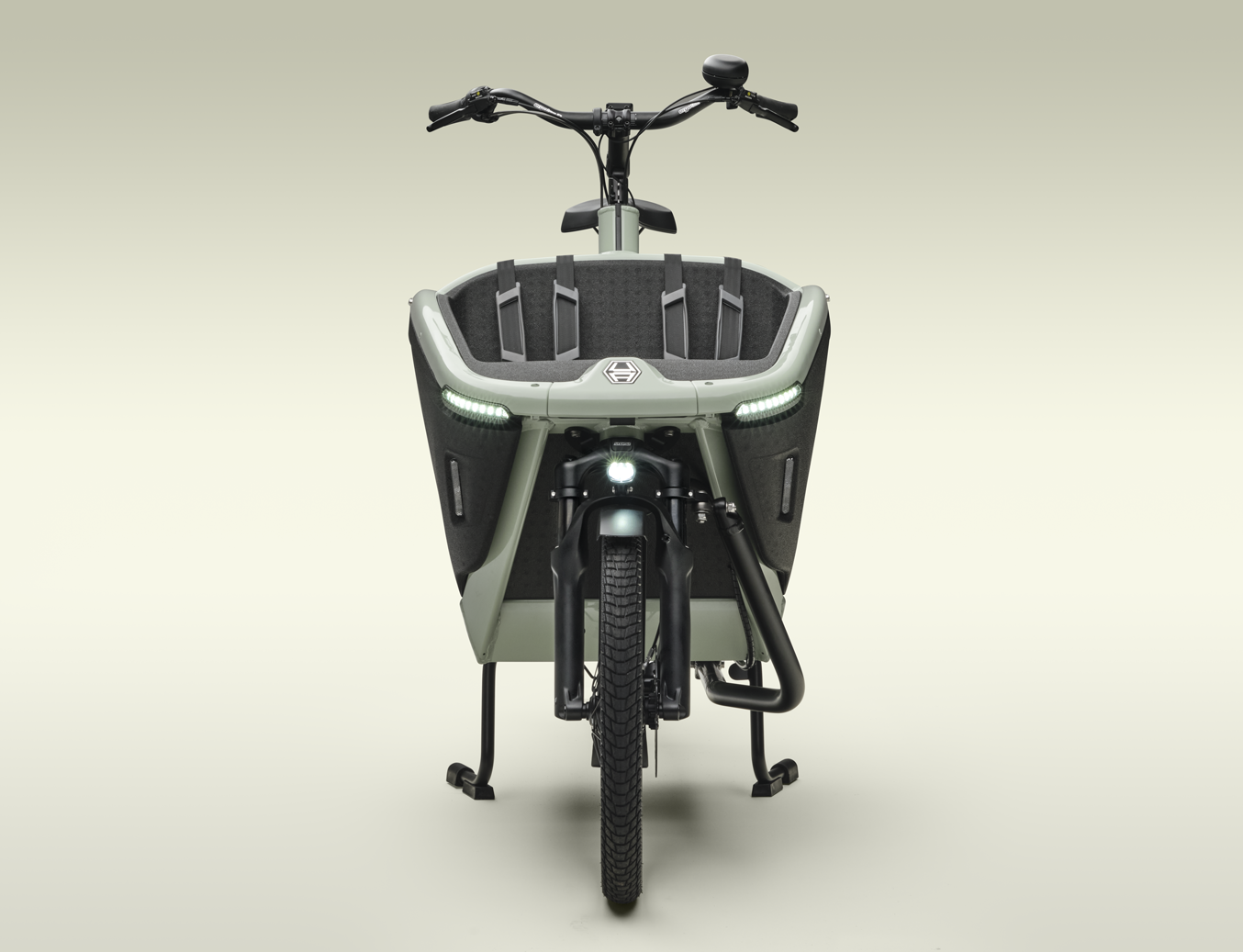

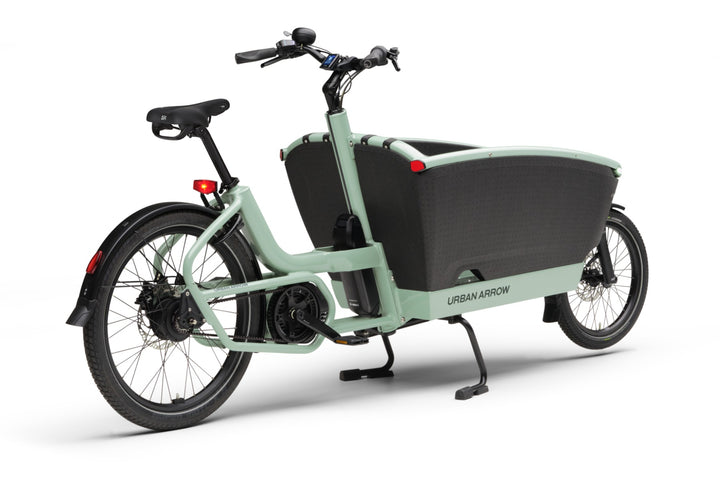

The Urban Arrow FamilyNext comes with everything you’ve come to love and expect from us. Built to the highest standards, this electric cargo bike offers our most spacious design yet, ensuring ultimate child safety for your most precious cargo. By equipping the bike with premium components from our trusted partners (hello, Bosch drive unit and Schwalbe tires!), we ensure a ride of unrivaled quality. With its lowered center of gravity, you’ll feel stable, comfortable, and always in control. This is the smart, proven choice and simply the best cargo bike for your family.
This is family transport redefined. Sleek, spacious and incredibly smooth. Discover why it’s the ultimate cargo bike for family life.
FEATURES:
- Enviolo Extreme: The ultimate stepless internal gear hub, built with reinforced components to handle extreme torque and heavy-duty cargo transport, ensuring long-term durability and smooth shifting under the most demanding conditions.
- Gates Belt Drive: Maintenance-free Gates Carbon belt drive for a clean, quiet, and long-lasting drivetrain, no lubrication needed.
- Bosch Cargo Line (100Nm) - Smart System: The ultimate powerhouse for heavy-duty cargo hauling, featuring a massive 100Nm of torque and the Bosch Smart System for maximum acceleration and effortless support on even the steepest inclines.
- Tektro Dorado: Heavy-duty four-piston hydraulic disc brakes specifically designed for high-speed cargo bikes, offering massive stopping power and consistent performance under the heaviest loads.

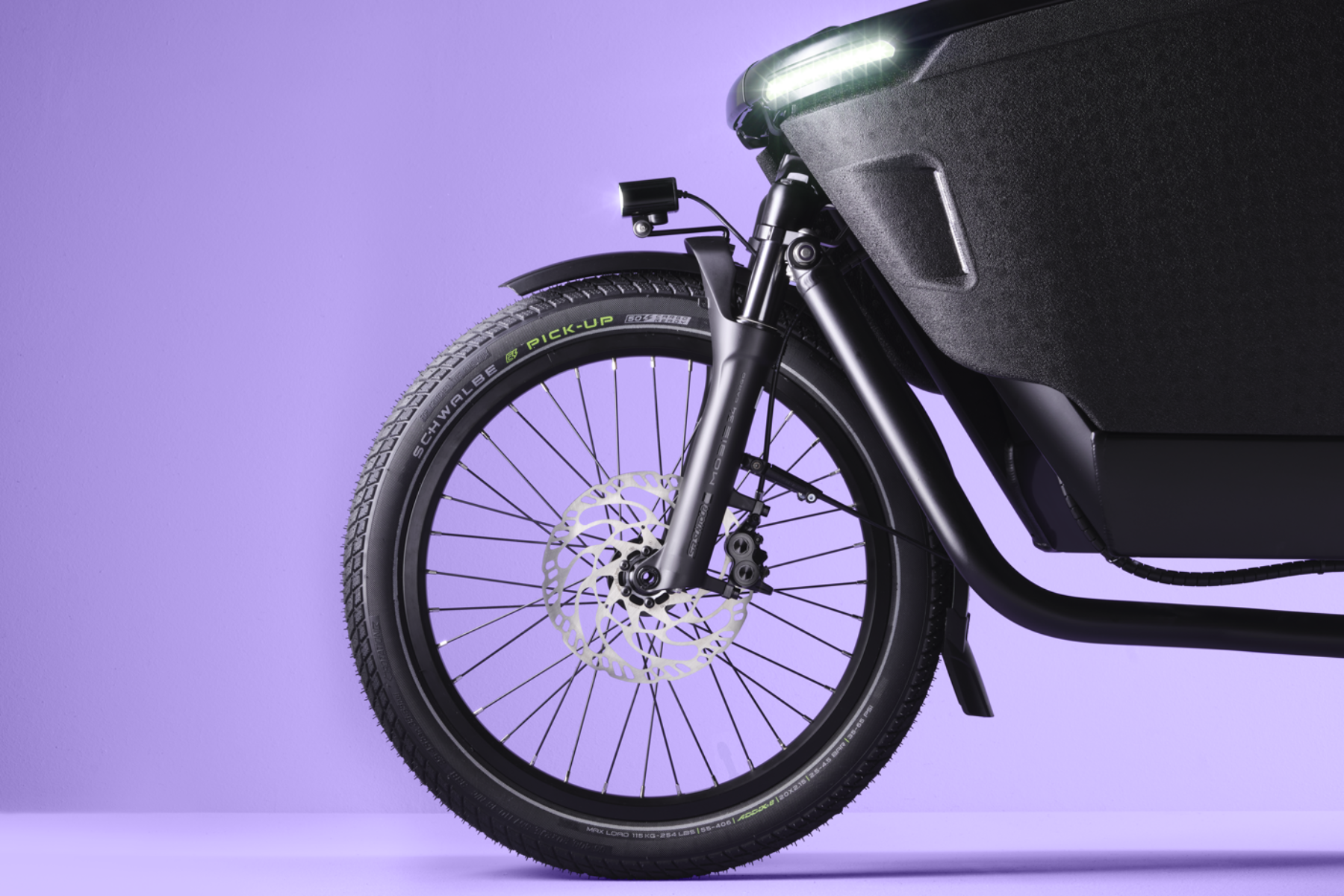

- Suntour Mobie34 CGO Boost: High-performance suspension fork specifically designed for cargo bikes, offering 34mm stanchions for maximum stiffness and a smooth, controlled ride over any terrain.

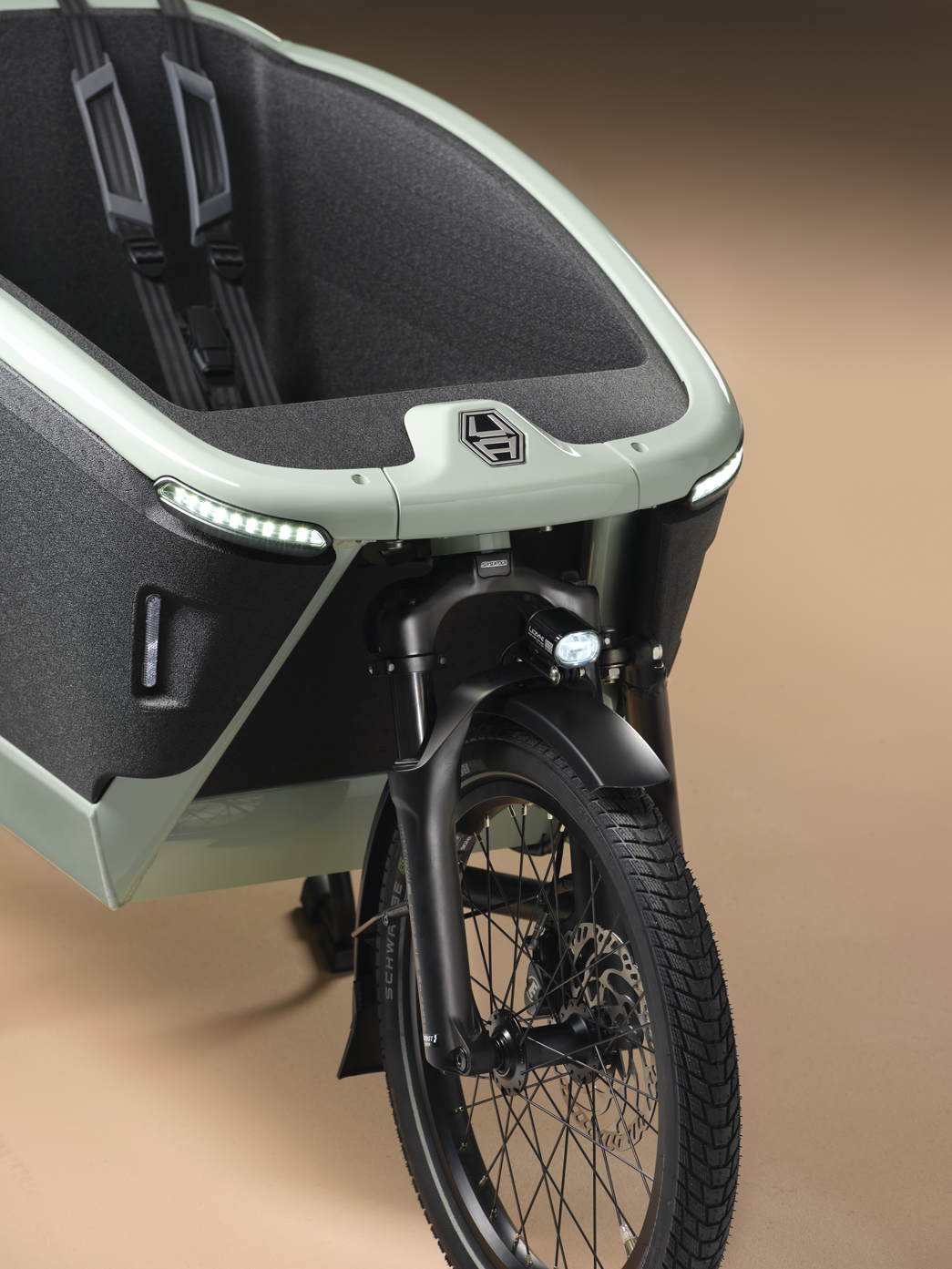

- Lezyne Power E115 + LED Lights: Powerful German StVZO optimized lens with an 115 lux output, paired with integrated LED strips in the box for superior visibility and safety in all conditions.

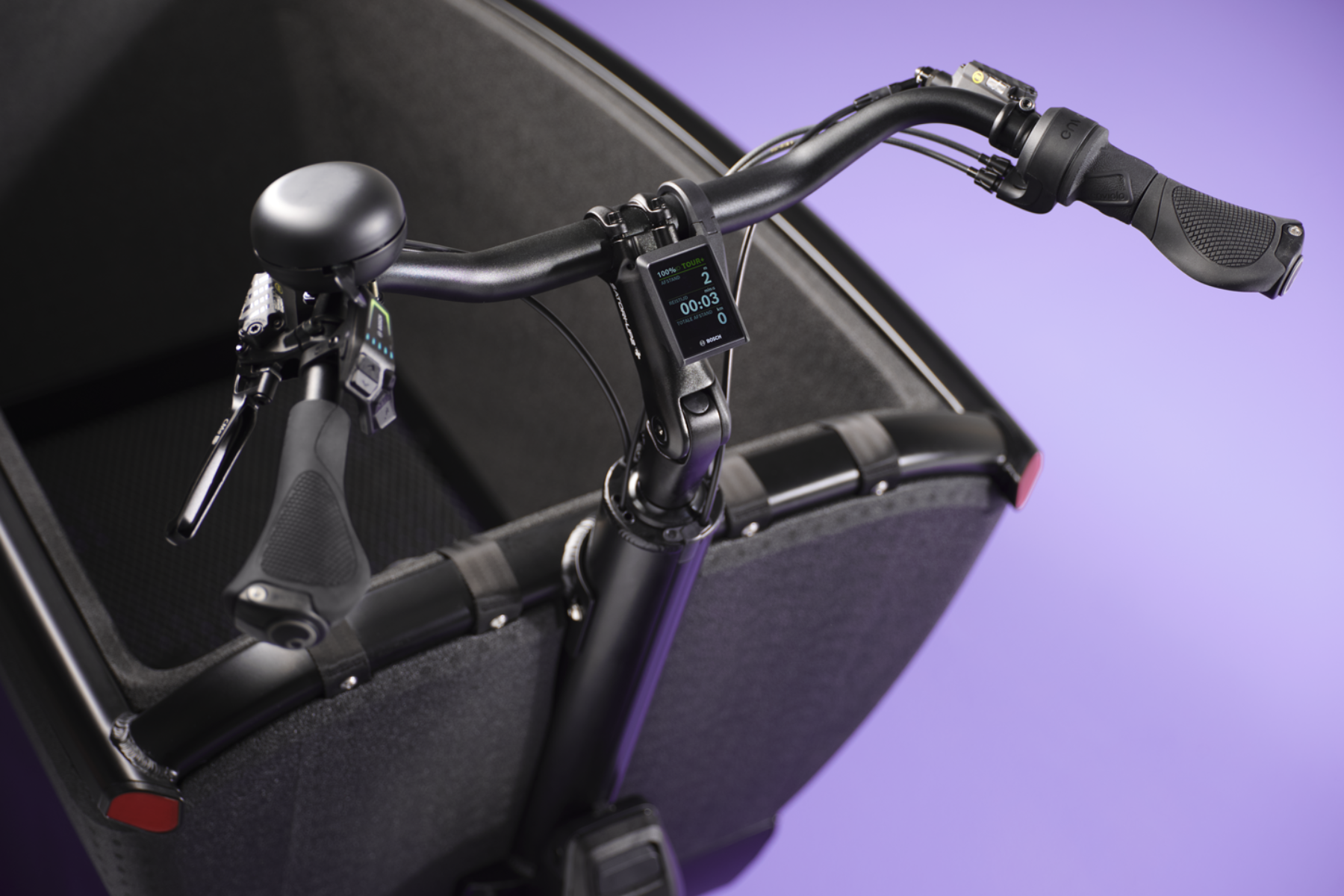

- Bosch Kiox 300 + LED Remote: Smart connectivity center featuring a high-definition color display for navigation and fitness data, paired with an intuitive LED Remote for seamless control without taking your hands off the handlebar.
SPECS:
| Frame | UA4.5, Aluminum |
|---|---|
| Fork | Suspension fork, Suntour Mobie34 CGO Boost, 20", 60mm |
| Rear Shock | N/A |
| Rims/Wheels | Front: Ryde Andra 40 20" / Rear: Ryde Andra 29 26" |
| Hubs | Front: 110x15 Thru axle Suntour / Rear: Enviolo Heavy Duty |
| Spokes | N/A |
| Tires | Front: Schwalbe Pick Up 55-406 / Rear: Schwalbe Super Moto X 62-559 |
| Crankset | Miranda Delta 0 Gen 4 |
| Chainrings | Gates Carbon Drive CDX 50T |
| Bottom Bracket | N/A |
| Chain | Gates Carbon Belt Drive CDX 120T |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Cassette/Rear Cogs | Gates 22T for Enviolo |
| Shifters | Enviolo Twist Display pro |
| Handlebars | Ergotec Moon cruiser 31.8mm |
| Stem | UA 110mm 31.8mm adjustable |
| Brakes | Magura CMe, 8.S Pads, Magura 203mm MDR-C Rear Rotor, Magura 180mm MDR-C Front Rotor |
| Pedals | VP 836 |
| Saddle | Selle Royal On Relaxed Royal Gel |
| Seat Post | UA seat post with groove 31.6mm |
| Motor | Bosch Cargo Line Gen 4 BES3, 250W - max 85 Nm |

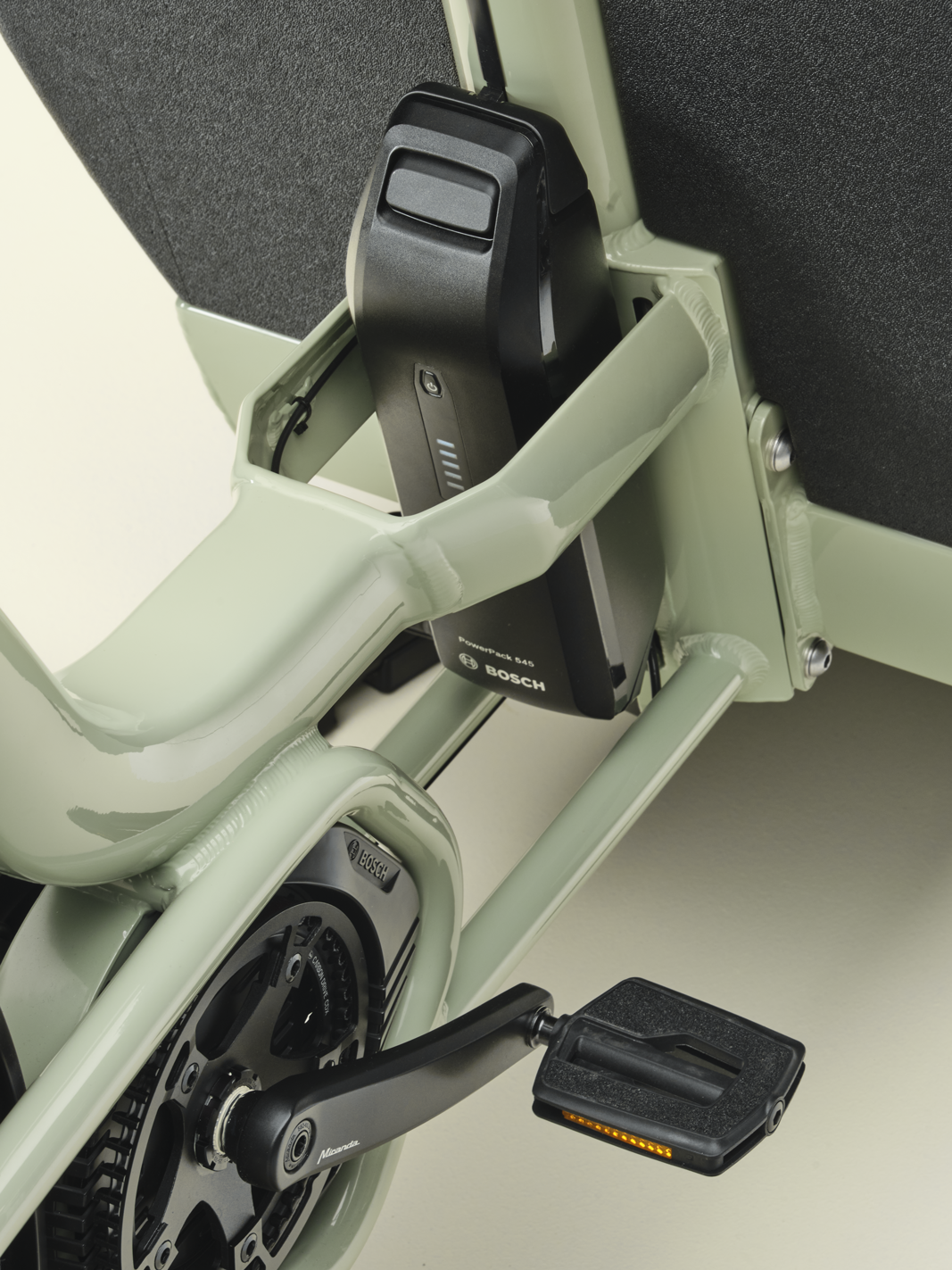

| Battery | Bosch Powerpack 545Wh |
| Display/Controller | Bosch LED Remote + KIOX 300 |
| Max Assisted Speed | N/A |
| Charger | N/A |
| Extras | Connected GPS-module (Optional), Spanninga Plateo XE 6V-36V rear light, Lezyne Power E115 + Design LED front light, UA Family Aluminum steering rod, Ergon GC10 grips, SKS PET fenders |
*Product specifications are subject to change without notice.
