Our take on the ultimate all-round gravel bike. Go anywhere, bring everything and then keep on going.
Cue up some serious gravel performance. With its bump-smoothing KingPin carbon frame, Shimano CUES U6000 1x11-speed shifting, CUES hydraulic disc brakes, gear mounts and 700x45mm tires, this rig is ready for gravel-riding, bikepacking or backroad exploring. Confidence comes standard.
What it's for: Gravel riding & racing, bikepacking, singletrack exploration, getting after it beyond the pavement’s end
FEATURES:
- Smiles for Miles: Kingpin is our lightweight, go-for-longer rear suspension. Maintenance-free and complexity-free, it gives the Topstone frame legit rear-wheel travel without compromising stiffness for the sprint. Kingpin provides a smoother ride, more traction to push harder, and more give to take on the rough stuff. You’ll hardly know it’s there, but you’ll be very glad you’ve got it.

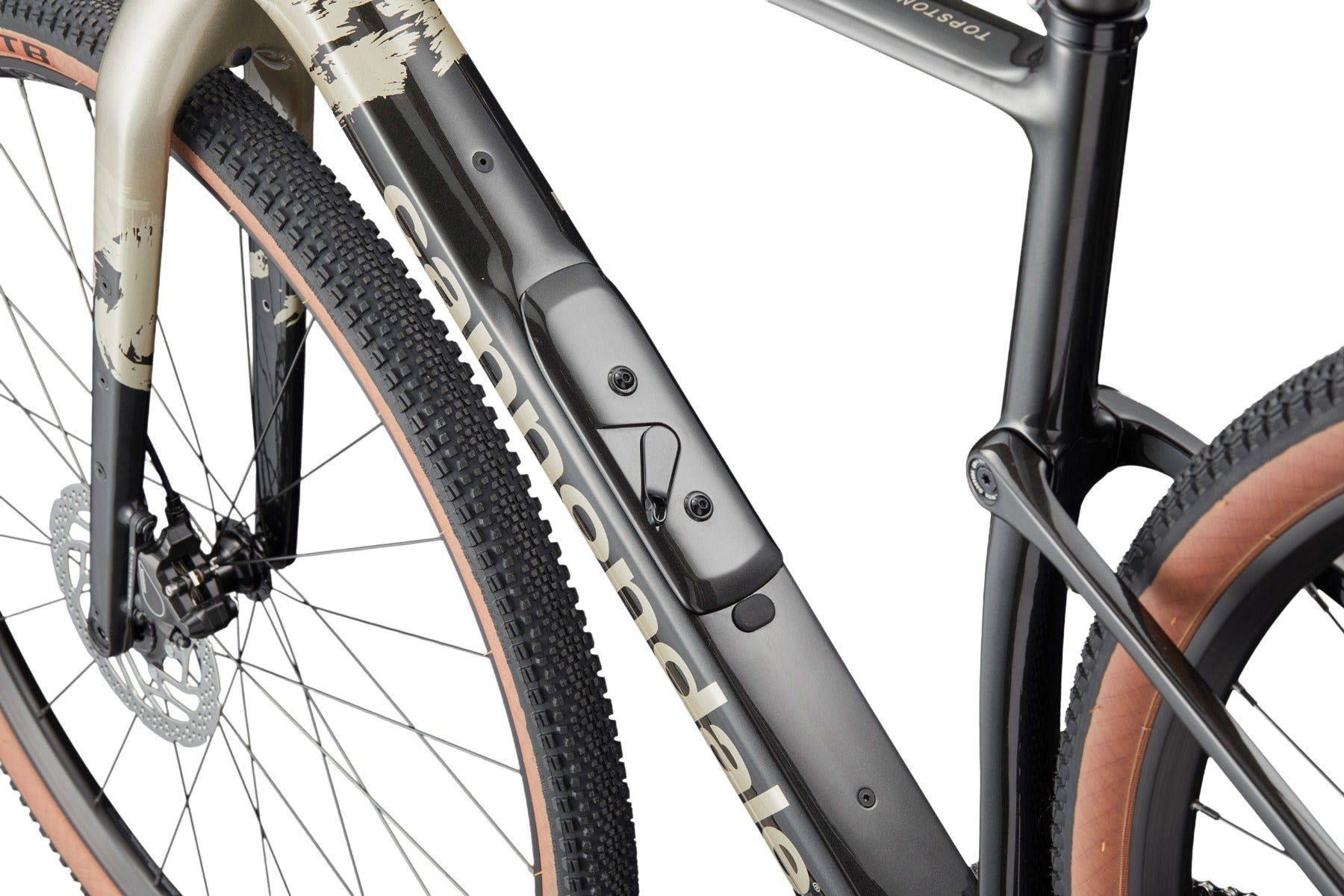

- Bring It All: Our all-new StashPort storage system in the downtube is designed to be concealed yet convenient. Paired with the special StashBag, you can bring your essentials along for the ride and know that they’ll be kept safe, whatever you get up to out there. Meanwhile, multiple mounting points on the frame, mean more gear and more adventures.
- Tuned Ride: A dialed-in ride, just for you. AKA: Proportional Response Construction. Everything from the carbon layup to the geometry on Topstone is individually tuned by frame size. So that the bike – including KingPin suspension – works in harmony to give you the best ride for you and your dimensions.
SPECS:
| Frame | Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube StashPort, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts |
|---|---|
| Fork | Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts |
| Rear Shock | N/A |
| Rims/Wheels | WTB ST i25 TCS, 28h, tubeless ready |
| Hubs | Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm |
| Spokes | Stainless Steel, 14g |
| Tires | WTB Riddler TCS Light, 700x45c, tubeless ready |

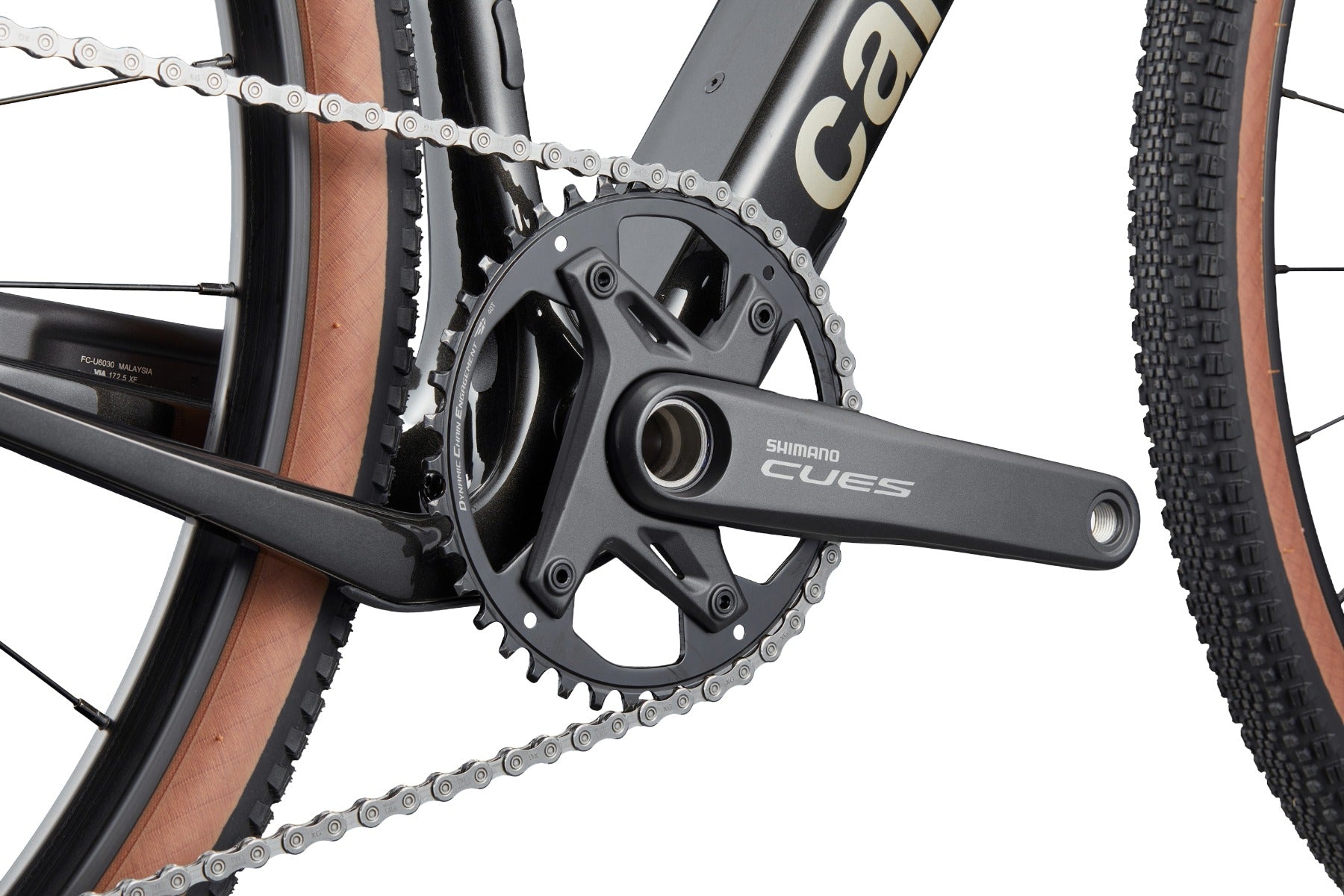

| Crankset | Shimano CUES 6030, 40T: 165mm (47cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm) |
| Chainrings | N/A |
| Bottom Bracket | Shimano BSA 68 |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Front Derailleur | N/A |

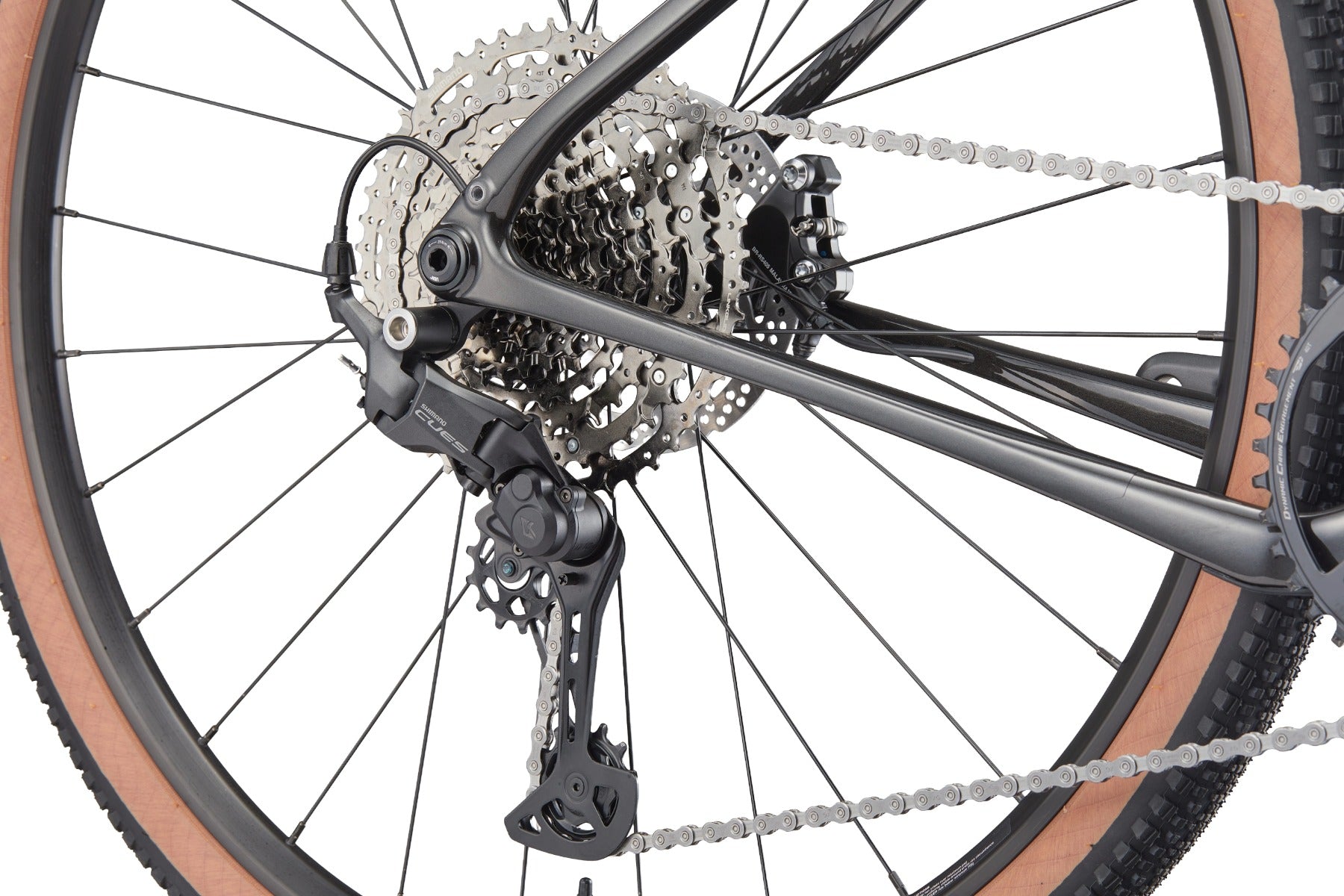

| Rear Derailleur | Shimano CUES U6000, Shadow RD+, 11-speed |
| Cassette/Rear Cogs | Shimano CUES LG400, 11-50, 11-speed |
| Shifters | Shimano CUES U6030, 11-speed |

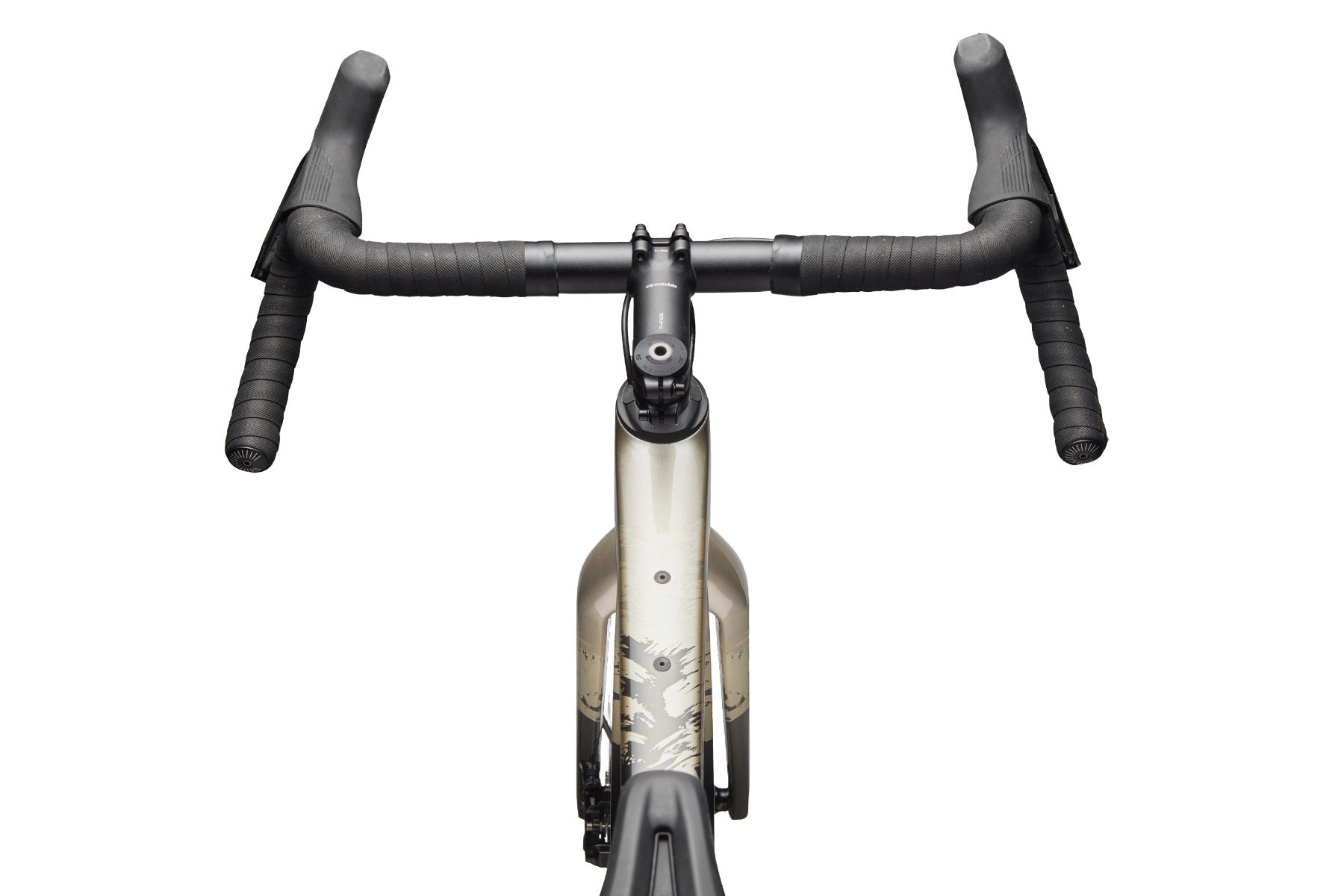

| Handlebars | Cannondale 3, butted 6061 Alloy, 16 deg flare, 120mm drop: 400mm (47cm), 420mm (51-54), 440mm (56-61cm) |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm) |
| Brakes | Shimano CUES RS405 hydraulic disc, 160/160mm RT30 rotors |
| Pedals | N/A |
| Saddle | Selle Royal SRX Open, 148mm |
| Seat Post | Cannondale 3, 6061 Alloy, 27.2x350mm |
| Extras | Large StashBag downtube storage bag, tubeless valves |
*Product specifications are subject to change without notice.
